Place of Origin: | Guangdong, China |
Brand Name: | Hivac |
Model Number: | HIVTSLEDT |
Application: | Site Seeing Elevator, Glass Curtain Wall, Shopping Mall Atrium Canopy, Glass Guardrail, Etc, Science And Technology Museums, Museums, Theaters, Exhibition Halls, Automotive Glass, Etc, Jewelry, Business Halls, 4S Stores, Hotels, Shoes And Clothing Stores | Color: | Lucency |
---|---|---|---|
Supplier Type: | ODM | Media Available: | Photo, Video, Advertising Display, LED Indoor Transparent Screen, Frivolous, High Transparency, Energy Conservation, HD, Highly Customizable, Strong Anti-interference |
Use: | Business Halls, 4S Stores, Hotels, Shoes And Clothing Stores, Luxury Stores, Commercial Complex, Exhibition Show, Brand Chain, Creative Display, Sightseeing Elevators, Glass Walls, Shopping Mall Atriums, Canopies, Glass Guardrails, Exhibitions, Stage Per | Pixels: | 3.91mm, 3.91mm |
Specification: | Negotiable Delivery, No Touch Screen, Picture Video Play, LED Indoor Transparent Screen, HD | Screen Type: | No Touch Screen |
Brightness: | 200-5000CD/㎡, 200-5000CD/㎡ | Pixel Density: | P2.6 P 3.91, P2.6 P 3.91 |
Color Depth: | Full Color(R1G1B1), Full Color(R1G1B1) | Lifespan (hours): | 100000, 100000 |
Ip Rating: | IP11, IP11 | View Angle(h/v): | 89/89/89/89, 89/89/89/89 |
Product Name: | LED Indoor Transparent Screen | Usage: | Indoor HD |
Keyword: | Led Transparent Film Screen | Display Function: | Video/Text/Picture/Time/3D Text/Office/SWF |

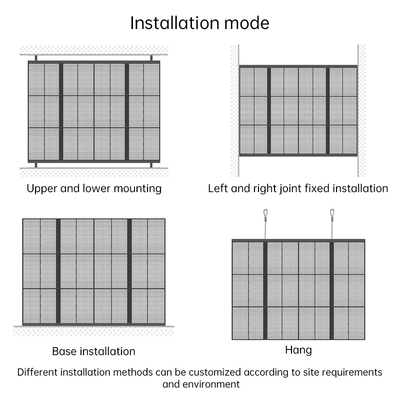

Installation: | Fixed Installation | Refresh Rate: | 3840Hz/s |
Name: | LED Digital Display | Size: | Customized Product |
Viewing Angle: | Huge Angle | Style: | LED Flexible Transparent Screen |
Type: | LED | Panel Size: | 1000*125mm, 1000*125mm |
product name | Module size mm | Module resolution (point) | Lamp bead specification | Box resolution | density | Maximum/average power consumption W/m² |
G2.6-5.2-12S | 500*125 | 192*24 | 1515 | 384*192dot | 73728 | 600/ 200 |
500*125 | 192*24 | 1415 | 384*192dot | 73728 | 800 / 260 | |
G2.8-5.6-11S | 500*125 | 176*22 | 2121 | 352*176dot | 61952 | 600 / 200 |
500*125 | 176*22 | 1921 | 352*176dot | 61952 | 800 / 260 | |
G3.91-7.81-16S | 500*125/62.5 | 128*16 | 2121 | 256*128dot | 32768 | 400 / 130 |
500*125 | 128*16 | 1921 | 256*128dot | 32768 | 400 / 130 | |
G3.91-7.81-8S | 500*125 | 128*16 | 1921 | 256*128dot | 32768 | 800 / 260 |
G3.96-7.81-7S | 500*62.5 | 126*16 | 1921 | 256*128dot | 32256 | 800 / 260 |
G7.8-7.8-8S | 500*125 | 64*16 | 2121 | 128*128dot | 16384 | 400 / 130 |
500*125 | 64*16 | 1921 | 128*128dot | 16384 | 400 / 130 | |
G7.8-7.8-4S | 500*125 | 64*16 | 1921 | 128*128dot | 16384 | 800 / 260 |
G5.2-10.4-6S | 500*125 | 96*12 | 1921 | 192*96dot | 18432 | 800 / 260 |
G10.4-10.4-3S | 500*125 | 48*12 | 2727 | 96*96dot | 9216 | 800 / 260 |
G10.4-10.4-2S | 500*125 | 48*12 | 2727 | 96*9dot | 9216 | 800 / 260 |
G15.6-15.6-static state | 500*125 | 32*8 | 3535 | 64*6dot | 4096 | 800 / 260 |
