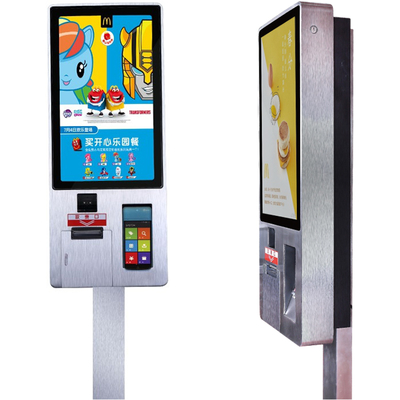

Name: Self Service Kiosk for Restauants Many Sorts of ultra Slim Vertical Wall Hanging Touch Screen Terminal 21.5/24/27 Inch
Brand: Shenzhen Hivac Display Technology Co., Ltd.
Availability: InStock

Home Products self service kiosk

Self Service Kiosk for Restauants Many Sorts of ultra Slim Vertical Wall Hanging Touch Screen Terminal 21.5/24/27 Inch

Product Details:

Place of Origin:	Guangdong, China

Contact Now

Detailed Product Description

Screen Size:	21.5" 24" 27" 32"43"	Touch Screen:	Capacitive Touch
Operating System:	Android/Windows 7/8/10	Resolution:	1920*1080P(Optional 4K Resolution)
Thermal Printer:	58/80mm Auto Cutting	Customized Service:	Accept
Brightness:	350cd/m2	Scanner:	QR Code
Application:	Indoor	Warranty:	1 Year

MODEL HV-FO240D-01A
Basic Configuration	Main Board	J1900	RAM	4G（Max. 8G）


		ROM	64G SSD/500G HDD（option）	OS	Windows 7
		internet	Gigabit
LCD Panel	Screen Size	24inch full bonding	Screen Type	TFT-LCD





		Backlight	WLED	Screen Size	569.2 x 341.1 mm
		Resolution	1920*1080	Contrast	3000:01:00
		View Angle	H:178°, V:178°	Brightness	250nits（no touch），225nits（touch）
		Touch	Capacitive	Touch Point	10 points
		Voltage	DC 12v	Work	0°C ~ 40°C, 20% ~ 80% RH.
		Voltage	DC 12v		0°C ~ 40°C, 20% ~ 80% RH.		Humidity
		Storage	-20°C~ 60°C, 10% ~ 95% RH	Ports	VGA , HDMI，USB，LAN
		Humidity	-20°C~ 60°C, 10% ~ 95% RH	Ports	VGA , HDMI，USB，LAN
Mainboard	Processor	4-core J1900 CPU，2.0GHz main frequency	Chip Group	CPU integration



		Extensive Port	2xMini-PCIE	Display	CPU HD Graphics Display Core
		Storage Type	1xSO-DIMM DDR3L 1066/1333MHz Memory，Max.8GB	Storage	1SATA2.0，1mSATA
		Storage Type	1xSO-DIMM DDR3L 1066/1333MHz Memory，Max.8GB		1SATA2.0，1mSATA		Port
		BIOS	AMI 64Mb Flash ROM	Type	Mini-ITX 170*170mm
		Audio	2*JACK，ALC662 Sound Card Chip
Printer	Print Method	Thermal Print	Resolution	203 dpi (8 dots/mm)




		Paper Width	80（mm）	Print Width	72（mm）
		Print Density	1-4 grade adjustable	Communicate	RS-232/USB
		Print Density	1-4 grade adjustable		RS-232/USB		Port
		Print Speed	170（mm/s）max	Check Function	Temperature Detection and paper out sensor
		Voltage	24V DC	Work Humidity	-10℃~+50℃/10% RH ~ 80% RH
		Cutter Life	70万次	TPH Life	50km
Scan	Voltage	5v DC	Work	-20°C 到 60°C
							Humidity





		Current	75mA-100mA	Read	CMOS
		Current	75mA-100mA		CMOS		Method
			1D SUPPORT: industrial 25 、 standard 、 matrix 25 、 china post 25 、 code 11 、 codabar 、 MSI/Plessey 、 code39(standard 39 & full ASCII code 39)、code 32、code93、code128、UPCA、UPCE、EAN13、EAN8、UPC/EAN、add-on 2/5、ISBN、ISSN、GS1(RSS) RSS-
		Support Code	14、LIMITED、EXPENDED、include GS1 STACK2D SUPPORT: pdf417, data matrix ,qr code . ect.
		Read Density	≥8mil	Lighting	LED (6000K) 90lux @100mm
		Light Source	265 LUX (130 mm)	Scan Angle	Omni directional decoding
		Strength	265 LUX (130 mm)	Scan Angle	Omni directional decoding
		Scan Speed	30tims/s	Resolution	640*480 pixel
		Result	Buzzer
Environment	Work	Indoor	Work	0°C - 40°C
			Environment			Humidity

		Work	10%-90% no condensation	Storage	-20°C - 50°C
		Humidity	10%-90% no condensation		-20°C - 50°C	Humidity
		Storage	10%-90% no condensation
		Humidity	10%-90% no condensation
Electrical	Input	Rated Voltage 90（V/ac）~264（V/ac）50/60（Hz）	Max. Power	≦130W
Electrical		Rated Voltage 90（V/ac）~264（V/ac）50/60（Hz）	Voltage	≦130W		Consumption
Mechanical	Outlook	Black + White	Machine	Metal
Parameter	Outlook	Black + White		Metal		Case
