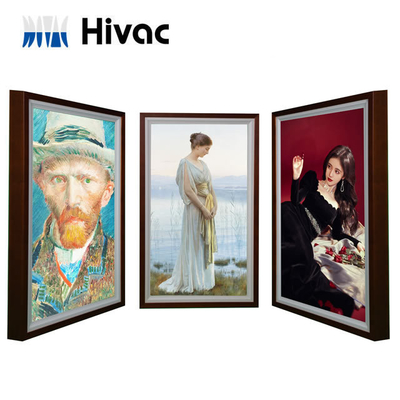

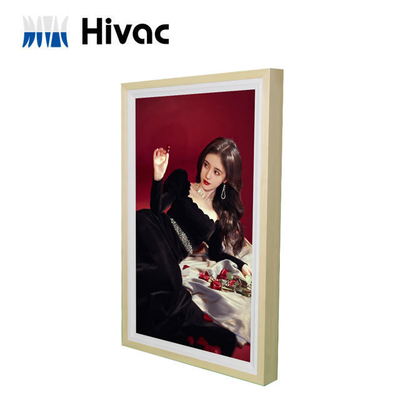

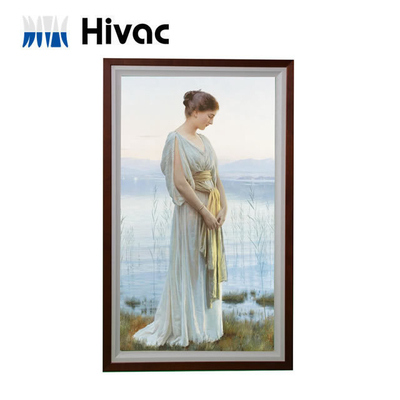

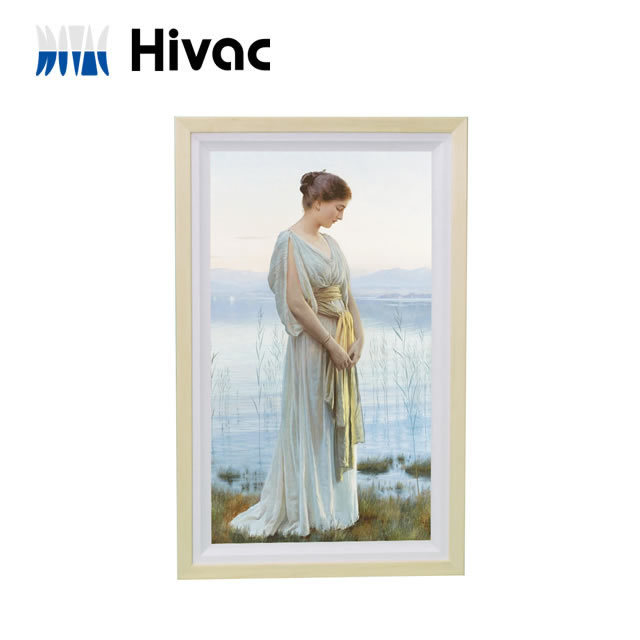

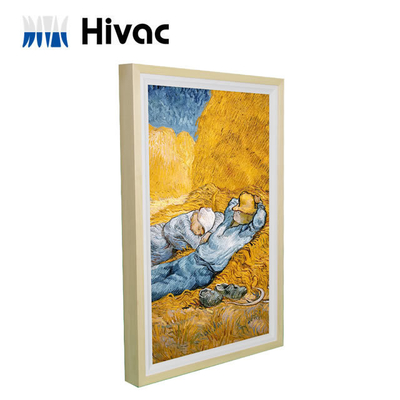

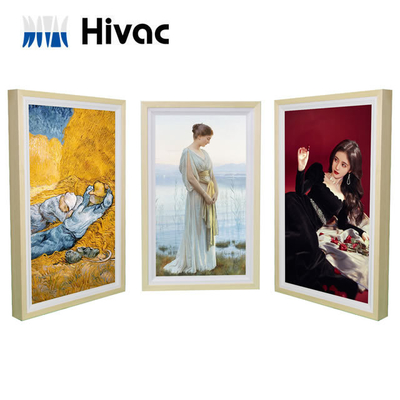

Name: Art Wooden Frame 32inch Wall Mount Advertising Digital Signage LCD Monitor
Brand: Shenzhen Hivac Display Technology Co., Ltd.
SKU: HTX43
Availability: InStock

Home Products LCD

Art Wooden Frame 32inch Wall Mount Advertising Digital Signage LCD Monitor

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Hivac
Model Number:	HTX43

Contact Now

Detailed Product Description

Size:	32 Inch	CPU:	Rockchip PX30 Quad Core ARM Cotex-A35
RAM:	1G DDR3(1G/2G For Optional)	ROM:	8G EMMC(8G/16G/32G/64G EMMC For Optional)
Memory Extension:	TF Card Extension With The Highest Support For 64GB	System:	Android 8.1
Intetnet:	Support 2.4G WIFI Connection	Power Consumption:	≤10W
Material:	Metal Materials	Net:	5kg
Panel Size:	32inch	Max Resolution:	1920(H) X 1080(V)

Company Profile

Shenzhen Hivac Display Technology Co., Ltd.

Shenzhen HIVAC Display Technology Co., Ltd. is a subsidiary of Shenzhen HIVAC Technology Group Co., Ltd. HIVAC Technology Group was founded in November 1994. The headquarter of the group is located in "HIVAC Technology Building", Nanshan Science Park, Shenzhen.lt is the first A company that has entered Shenzhen Science and Technology Park. The Group owns 2 sets of self-owned buildings in Shenzhen Nanshan Science and Technology Park:HIVAC Science and Technology Building with a building area of 80,000 square meters in the southern section of the Science Park, and a R&D and trial production base covering an area of 24,000 square meters in the northern section of the Science Park --- -HIVAC Building. At the same time, the group has established a branch in Anhui Province. Form a complete industrial structure with Shenzhen Anhui as the operation and R&D center integration.

Our Factory

Certifications

Exhibition

Specification

Size	32"LCD Panel
Active display area	× mm (H×V)
Resolution	1920(V)x1080(H)
Brightness	500cd/㎡
Contrast ratio	1200:1
Display color	16.7M
Backlight	WLED
Viewing angles	85/85/85/85 (Typ.)(CR≥10)
Response time	30ms
Lifespan	30000 hours
CPU	Rockchip PX30 Quad core ARM Cotex-A35
RAM	1G DDR3(1G/2G for optional)
ROM	8G EMMC(8G/16G/32G/64G EMMC for optional)
Memory extension	TF Card extension with the highest support for 64GB
System	Android 8.1
Intetnet	Support 2.4G WIFI connection
RTC real time clock	Support timing on / off function
Interfaces	1micro USB(OTG)，1TF card,2*Type-c(DC 12V input,Need to match with our company's special adapter for power supply)
Optional	4G module
		speak 8Ω1W*1
		Support for special requirements customization
Split screen display	It supports 1920x480 resolution of pictures and videos, text information release, clock display and multiple split screen display.
Content management	The schedule of the release content is managed according to the schedule. The schedule can be divided into time period, day, week, month and rotation. Can be divided into a single terminal or group group display.
Terminal monitoring	Support network access, terminal monitoring: download programs and server to terminal commands and execution status visualization.
Content publishing	Support disconnected transmission, support the terminal running status monitoring, support statistical reports;
Free split screen	Screen area free segmentation: random combination of video, pictures, subtitles, clock, weather forecast and network data sources and other information.
Play management	Player management: support system startup, shutdown, restart; Supports remote software upgrade.
Operating voltage	100-240V(50/60Hz)
Power consumption	≤10W
Product size	24069.616mm
Installation	Wall-mounted
Material	Metal materials
Net	≤10KG
Surface treatment	Metallic paint (color seroin available: black, silver gray, custom color)
Storage Environment	Temperature：-30℃～80℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
Working Environment	Temperature：-20℃～70℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa
Admachine	1Pcs
Cable	1Pcs（OTG cable，micro USB to USB 2.0）
Adapeter	1Pcs (12V-2A)
Support for special requirements customization
