Name: Outdoor Naked Eye 3D Shopping Mall Advertising LED Video Wall HD Waterproof and Dustproof Customized Digital Signage
Brand: Shenzhen Hivac Display Technology Co., Ltd.
SKU: HV-HR Pro
Availability: InStock

Home Products 3Dnaked eye digital signage

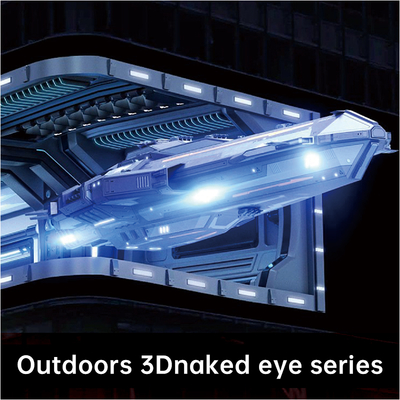

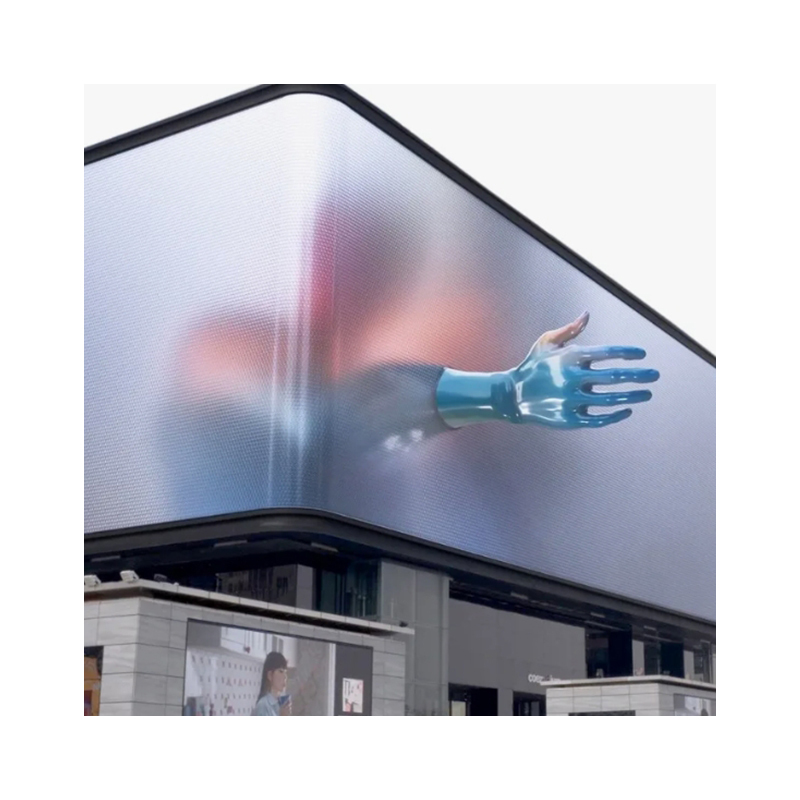

Outdoor Naked Eye 3D Shopping Mall Advertising LED Video Wall HD Waterproof and Dustproof Customized Digital Signage

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Hivac
Model Number:	HV-HR Pro

Contact Now

Detailed Product Description

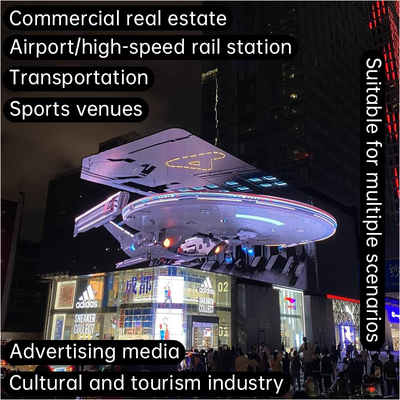

Application:	Commercial Real Estate, Airport/High Speed Rail Station, Transportation, Sports Venue, Advertising Media, Cultural Tourism Industry, Indoor And Outdoor, Dustproof, Waterproof And Moisture-proof, Energy Conservation, Protection Class IP65, 160° Wide Area Vi	Supplier Type:	ODM
Media Available:	HD, IP65, Indoor And Outdoor, Customized Outdoor Naked Eye 3D Shopping Mall, 160° Wide Area View, Life Span Up To 100,000 Hours, Front And Rear Maintenance, Energy Conservation, Outdoor Naked Eye 3D LED HD Video Wall	Use:	Advertising Publish, Shopping Mall, Cultural Tourism Industry, Advertising Media, Sports Venue, Transportation, Airport/High Speed Rail Station, Commercial Real Estate, Indoor And Outdoor, Naked Eye 3D HD LED Video Wall Digital Signage
Pixels:	Other, Other	Specification:	Video Wall
Screen Type:	Non-touch	Brightness:	≤6000, ≤6000
Contrast Ratio:	≥5000:1, ≥5000:1, 5000 : 1	Lifespan (hours):	100,000, 100,000

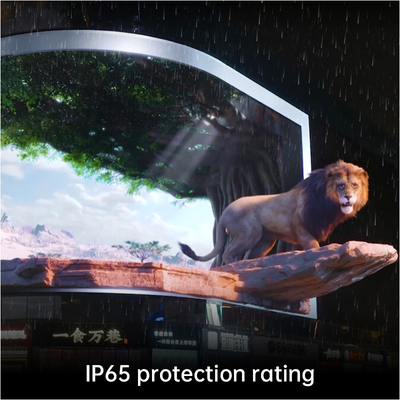

Ip Rating:	IP65, IP65	View Angle（h/v）:	160° Wide Area View, 160° Wide Area View
Product Name:	LED Outdoor Naked Eye 3D Display	Brightness:	4500-7500
Touch Screen:	Non-touch	Pixel Pitch:	P4 P5 P6 P8 P10

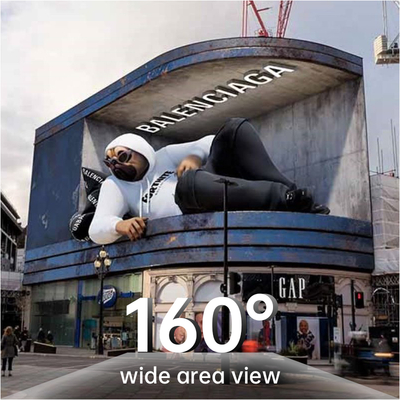

Size:	Customed Size	Viewing Angle:	160 Degree
Installation:	Box Mounting	Operating Life:	≥100,000 Hours
Level Of Protection:	IP65	Type:	LED
Panel Size:	480-320mm, 480-320mm

Company Profile

Shenzhen Hivac Display Technology Co., Ltd.

Shenzhen HIVAC Display Technology Co., Ltd. is a subsidiary of Shenzhen HIVAC Technology Group Co., Ltd. HIVAC Technology Group was founded in November 1994. The headquarter of the group is located in "HIVAC Technology Building", Nanshan Science Park, Shenzhen.lt is the first A company that has entered Shenzhen Science and Technology Park. The Group owns 2 sets of self-owned buildings in Shenzhen Nanshan Science and Technology Park:HIVAC Science and Technology Building with a building area of 80,000 square meters in the southern section of the Science Park, and a R&D and trial production base covering an area of 24,000 square meters in the northern section of the Science Park --- -HIVAC Building. At the same time, the group has established a branch in Anhui Province. Form a complete industrial structure with Shenzhen Anhui as the operation and R&D center integration.

Our Factory

Certifications

Exhibition

Product Description

Specification

LED outdoor display series(HV-HR Pro6 series)parameter
Model	HV-HR Pro4	HV-HR Pro5	HV-HR Pro6	HV-HR Pro8	HV-HR Pro10
Pixel Pitch	4 (mm)	5 (mm)	6 (mm)	8 (mm)	10 (mm)
Module size	320×160 (mm)	320×160 (mm)	192×192 (mm)	320×160 (mm)	320×160 (mm)
Module pixel	80×40	64×32	32×32	40×20	32×16
Physical pixel	62500 (dot/m²)	4000 (dot/m²)	27777 (dot/m²)	15625 (dot/m²)	10000 (dot/m²)
LED	SMD 1921	SMD 1921	SMD 2727	SMD 3535	SMD 3535
Luminance	4500-7500 (cd/m²)	4500-7500 (cd/m²)	4500-7500 (cd/m²)	4500-7500 (cd/m²)	4500-7500 (cd/m²)
Refresh rate	1920 (Hz)	1920 (Hz)	1920 (Hz)	1920 (Hz)	1920 (Hz)
Scan	1/10S	1/8S	1/8S	1/5S	1/4S
Module thickness	15.6 (mm)	15.6 (mm)	15.6 (mm)	15.6 (mm)	15.6 (mm)
Case size	960×960 (mm)	960×960 (mm)	960×960 (mm)	960×960 (mm)	960×960 (mm)
Box pixel	240×240	192×192	160×160	120×120	96×96
Casing thickness	90-110 (mm)
Operating life	≥100,000 hours
Contrast ratio	≥5000:1
Color temperature	2000-9500K adjustable
Gray level	14bit
Maximum power	1000-1200 (w/m²)
Average power	400-600 (w/m²)
Input voltage	AC100~240V 50/60Hz
Module voltage	DC4.7~5V±0.2V
Temperature and humidity	Temperature-10~40℃ Humidity/10%-90%
Level of protection	IP65
Box material	Die cast aluminum, sheet metal

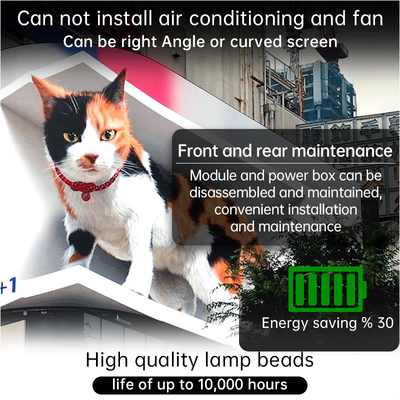

Maintenance mode	Front and rear maintenance
Way to install	Box mounting
