Outdoor Naked Eye 3D Display Custom Commercial square High Brightness HD LED Video Wall Easy Installation and Maintenance

Outdoor Naked Eye 3D Display Custom Commercial square High Brightness HD LED Video Wall Easy Installation and Maintenance

Outdoor Naked Eye 3D Display Custom Commercial square High Brightness HD LED Video Wall Easy Installation and Maintenance

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Hivac
Model Number:	HV-HR

Contact Now

Detailed Product Description

Product Name:	Outdoor 3D Naked Eye Display	Brightness:	4500-7500
Touch Screen:	Non-touch	Pixel Pitch:	P4 P5 P6 P8 P10

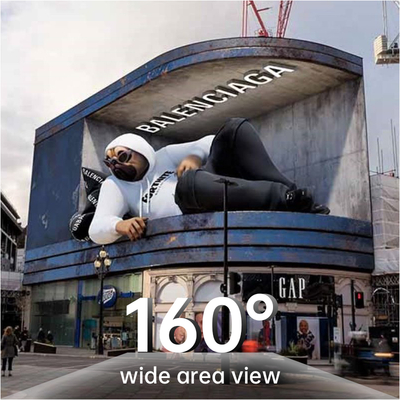

Size:	Customed Size	Viewing Angle:	160 Degree
Installation:	Box Mounting	Contrast Ratio:	5000 : 1
Operating Life:	≥100,000 Hours	Level Of Protection:	IP65

LED outdoor display series(HV-HR series)parameter
Model	HV-HR4	HV-HR5	HV-HR6	HV-HR8	HV-HR10
Pixel Pitch	4 (mm)	5 (mm)	6 (mm)	8 (mm)	10 (mm)
Module size	320×160 (mm)	320×160 (mm)	192×192 (mm)	320×160 (mm)	320×160 (mm)
Module pixel	80×40	64×32	32×32	40×20	32×16
Physical pixel	62500 (dot/m²)	4000 (dot/m²)	27777 (dot/m²)	15625 (dot/m²)	10000 (dot/m²)
LED	SMD 1921	SMD 1921	SMD 2727	SMD 3535	SMD 3535
luminance	4500-7500 (cd/m²)	4500-7500 (cd/m²)	4500-7500 (cd/m²)	4500-7500 (cd/m²)	4500-7500 (cd/m²)
refresh rate	1920 (Hz)	1920 (Hz)	1920 (Hz)	1920 (Hz)	1920 (Hz)
scan	1/10S	1/8S	1/8S	1/5S	1/4S
Module thickness	15.6 (mm)	15.6 (mm)	15.6 (mm)	15.6 (mm)	15.6 (mm)
case size	960×960 (mm)	960×960 (mm)	960×960 (mm)	960×960 (mm)	960×960 (mm)
Box pixel	240×240	192×192	160×160	120×120	96×96
Casing thickness	90-110 (mm)
operating life	≥100,000 hours
contrast ratio	≥5000:1
color temperature	2000-9500K adjustable
gray level	14bit
maximum power	1000-1200 (w/m²)
average power	400-600 (w/m²)
input voltage	AC100~240V 50/60Hz
Module voltage	DC4.7~5V±0.2V
Temperature and humidity	Temperature-10~40℃ Humidity/10%-90%

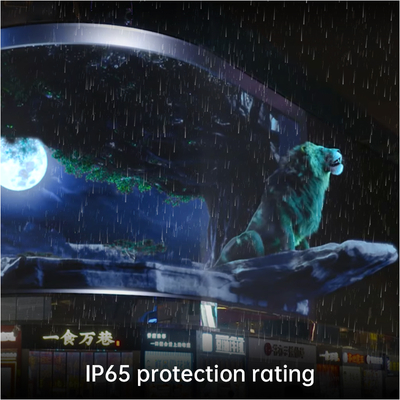

level of protection	IP65
Box material	Die cast aluminum, sheet metal

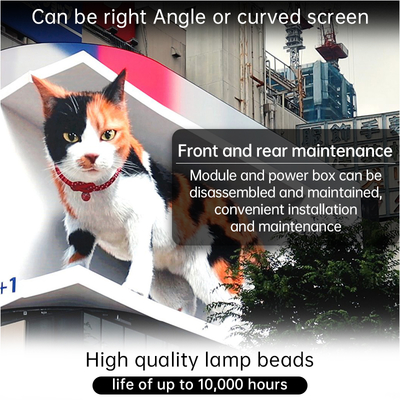

maintenance mode	Front and rear maintenance
way to install	Box mounting
