Application: | Indoor | Supplier Type: | ODM, OEM, Paperless Conference System |
---|---|---|---|
Media Available: | Electronic Table Card, Electronic Conference Table Card, Meeting Room Conference System, NFC, Cloud Operating System, Conference Table, E Ink, Bluetooth, Bluetooth Transmission, Place Cards & Table Numbers, Place Cards, Name Plate | Use: | Electronic Table Card, Electronic Conference Table Card, Meeting Room Conference System, Conference Table, Workshops, Conference, Meeting, Place Cards & Table Numbers, Place Cards, Name Plate |
Specification: | E Ink | Product Name: | E Ink Conference Table Card |
Usage: | Meeting Room | Keyword: | E Ink |
Display Function: | Double-sided | Weight: | 400±5g |
View Area: | 161.0 Mm X96.0 Mm | Resolution Ratio: | 800*480 |
DPI: | 180 | OS: | Support For Android Phone Installation |
Technology: | High Light ABS, Base Covered With Transparent PMMA Trim Cover | Type: | E Ink |
Category | Specification |
Screen | 7.3-inch seven-color e-ink screen |
View area | 161.0 mm x96.0 mm |
Resolution ratio | 800*480 |
DPI | 180 |

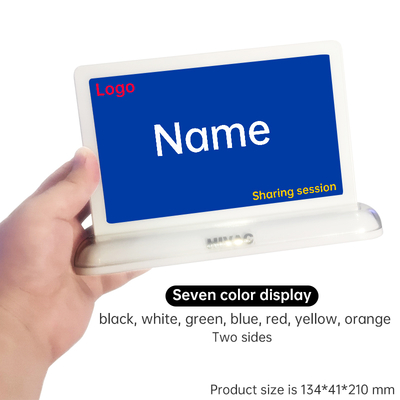

Display type | Seven colors (black, white, green, blue, red, yellow, orange) |
Gray-scale | 2 gray scales |
Product size | 134*41*210 mm |
Structure | Vertical double-sided horizontal screen display, base body one |

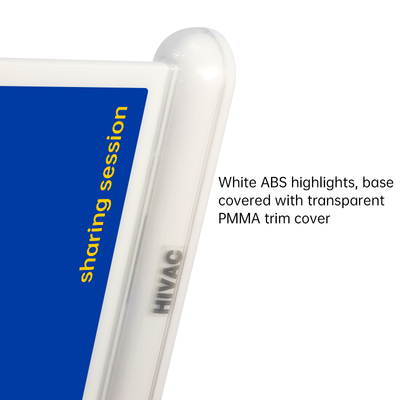

Craft | The body is wood grain or white high-gloss ABS, and the base is covered with transparent PMMA decorative cover |
Product weight | 400±5g |
Working temperature | 0℃ to 35℃ |
Storage temperature | -25℃ to 60℃ |
Battery life | Half a year (Note: using Nanfu alkaline battery, update the screen once a day) |
Power dissipation | Brush working current 40mA, standby current less than 0.1mA |
Working voltage | 3V |
Transmission distance | Bluetooth communication within 10 meters, normal radius within 15 meters (open 100 meters) |

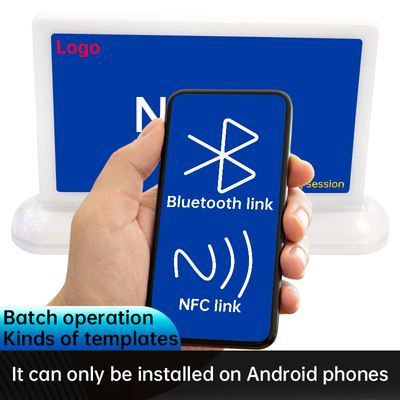

Transfer mode 1 | Transfer the image through the NFC in the center of the display |
Transfer mode 2 | Via mobile phone Bluetooth image transfer. Maintain the best transmission in the 0-5m range |
Operating system | It supports the installation of Android phones, but does not support the I0S of Apple phones |
